The purpose of the reverse osmosis booster pump is to increase water pressure going into the quick production capacity RO unit for water purifiers. Booster pumps provide reliable pressure feedingfor efficient membrane utilization. These pumps are capable of continuous duty and are effective for recirculation-based applications as well. They are ideally suited to work with hydro-pneumatic storage systems but are compatible with most hydraulic shut-off valves also.
These pumps are commonly used with one or more flow control components including pressure switches, tank level controllers, or electronic shut-off valves. A typical “RO Kit” includes a booster pump, pressure switch, and transformer, which is included.
Reverse osmosis is a pressure-driven process. you won’t get a lot of water and the product water quality will be compromised if the unit runs below 45 psi. Low inlet pressure makes the unit produce more rejected water, produce less drinking water, fill the storage tank more slowly, and produce lower quality water. RO units run well on the typical city water pressure of 70 psi, but they run even better with a small pump to boost the pressure to 100 psi or higher for districts where have few water treatment industries.
TECHNICAL PARAMETER

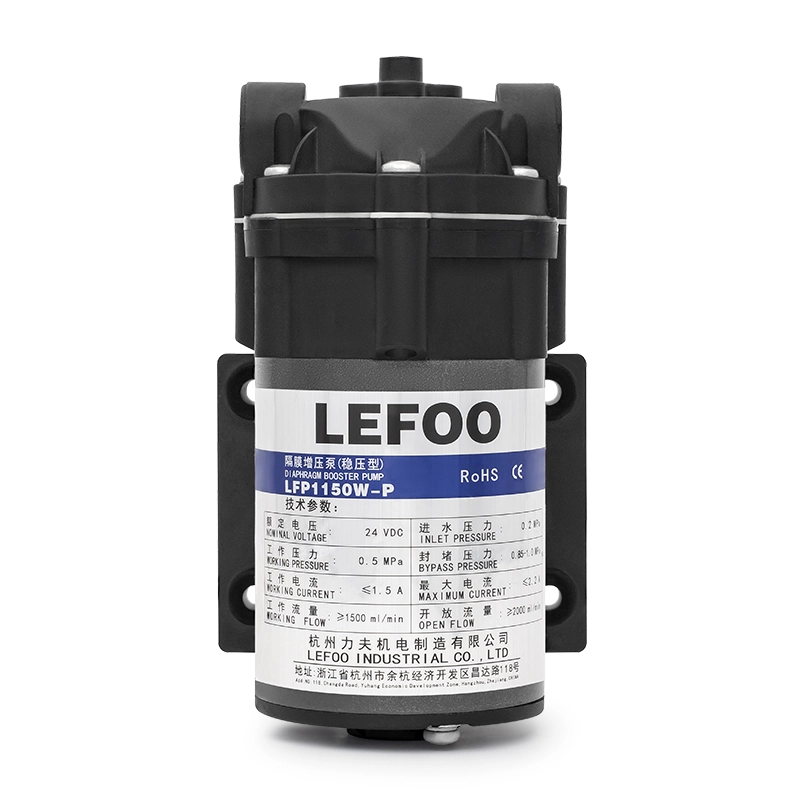

| LEFOO 24VDC 150GPD RO Booster Pump | ||
| The pumps are capable for water purifiers with a clean water production of 150 gallons per day | ||
 | ||
| Model | LEP1150W-P | LEP1150W |
| Voltage | 24VDC | |
| Inlet Pressure | 0.2MPa | |
| Working Pressure | 0.5Mpa | |
| Working Current | ≦1.5A | |
| Working Flow | ≧1500ml/min | |
| Open Flow | ≧2000ml/min | ≧2200ml/min |
| Bypass Pressure | 0.85~1.0Mpa | |
| Maximum Current | ≦2.2A | ≦2.0A |
| Connection | 3/8"NPT 3/8"NPT "0" 1/4" Male Quick Connector 1/4" Top Female Quick Connector | |
| Certifications | NSF, CE, ROHS, REACH, EU Food Grade | |
*High water preventing level.
*Compliant with CE, Rohs, CQC certifications.
*Large flux water outlets with stable pressure and long working life.
*Compact structure consists of robust plastic and metal components.
*DC Powered strong impetus motor with low noise, low vibration level.
*Whole process quality controls in processes of electrical, sealing, and pressure boosting.
Water Treatment/RO
Carbonation Systems
Beverage/Coffee Systems
Water Vending, Dispensing
Hydroponics/Aeroponics
Misting Systems
Surface Sanitation
Humidification
HVAC Coil Cleaning
Medical Lab Water
Autoclave Systems
Endoscope Reprocessing/Chemical Boost
Dialysis Chemical Injection
Methanol & Water Injection
Sparkling Water Machine
Commercial Sparkling Water Machine
Commercial Carbonated Water Machine
Carbonation Systems
Commercial Water Dispenser
Water Dispensers
Soda Machine
RO Purifier
RO Water Dispenser
Water Coolers
Misting System
Teeth Cleaning Industry
