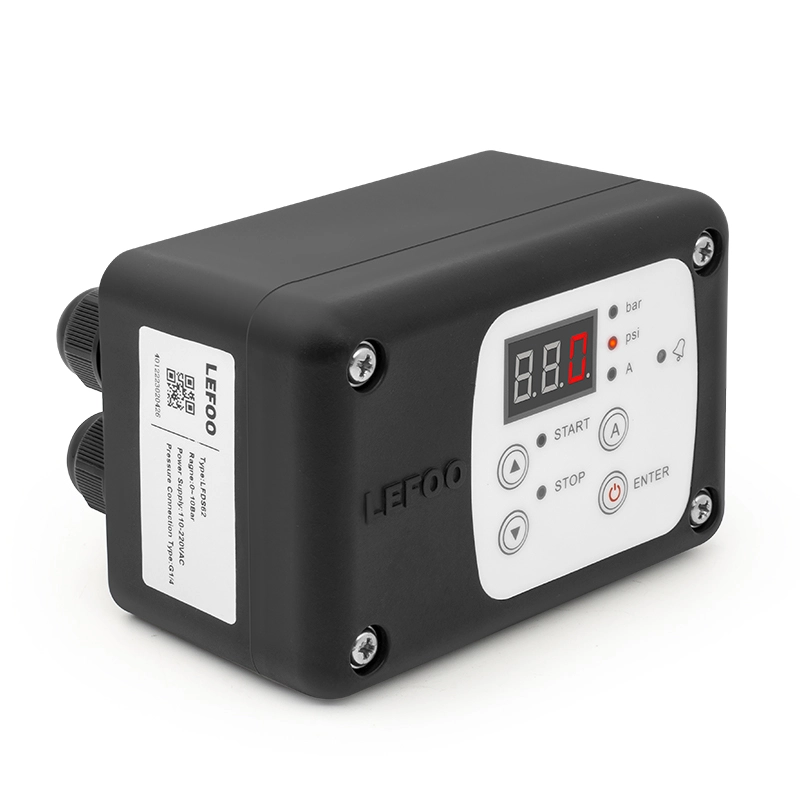

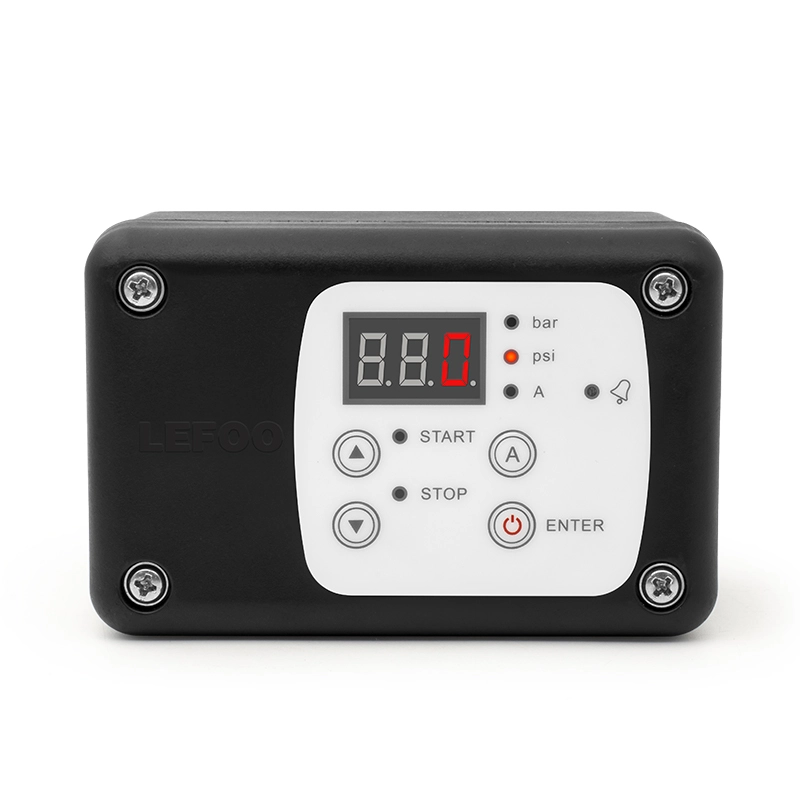

LEFOO LFDS62 adopts a high-reliability ceramic core for pressure measurement, the signal is processed by the back-end circuit and displayed, and the relay output is automatically controlled according to the pressure change. This product is designed with an all-engineering plastic shell, the control pressure and rated current can be set by pressing the button. The LED can display exact pressure in real-time, and so is output current when switching, moreover, it has overcurrent protection function. When it is using for a water pump system, the dry pumping alarm can be turned on to protect the motor. In addition, according to the actual condition, the rapid cycle alarm function can be turned on to avoid frequent start and stop of the motor. This controller has the characteristics of anti-vibration, simple operation, strong stability and clear display. It can be widely using for for air compressors, water pumps and any pressure control systems.
* An intelligent control instrument that integrated pressure measurement, display and control.
* Automatic adjustment of working parameters, flexible and convenient.
* High accuracy.
* Rated current can be set, function with over current protection.
* Dry pumping and rapid cycle alarm.
| LEFOO Digital Pressure Switch LFDS62 | |||||
| Pressure range | Regular model 0~10bar | High pressure model 0~16bar | |||
| Overload pressure | 1.5 times rated pressure | ||||
| Accuracy | ±1%F.S | ||||
| Working Temperature | －10℃~50℃ | ||||
| Storage Temperature | －20℃~60℃ | ||||
| Measured Medium | Gas or liquid compatible with 1Cr18Ni9Ti, nylon, fluororubber or nitrile rubber | ||||
| Output Mode | AC output, the output voltage is consistent with the supply voltage | ||||
| Power Supply | 110~220VAC | ||||
| Protection Grade | IP55 | ||||
| Pressure Connection | NPT1/4、G1/4 internal thread | ||||
| Pressure Type | Gauge Pressure G | ||||
| Load Capacity | 10A MAX | ||||
| Display Method | 3-digit digital tube | ||||
| Code and description | Remark | ||||
| LFDS62 | Digital Pressure Switch | Model | |||
| 1 | Regular | Measurement Range | |||
| 2 | High pressure | ||||
| G | G=G1/4 (Default) | Pressure Connection | |||
| N | NPT1/4 | ||||
| LFDS62 | 1 | G | Example of Selection | ||
An intelligent control instrument that integrated pressure measurement, display and control.
Automatic adjustment of working parameters, flexible and convenient.
High accuracy.
Rated current can be set, function with over current protection.
Dry pumping and rapid cycle alarm.
It can be widely using for for air compressors, water pumps and any pressure control systems.
