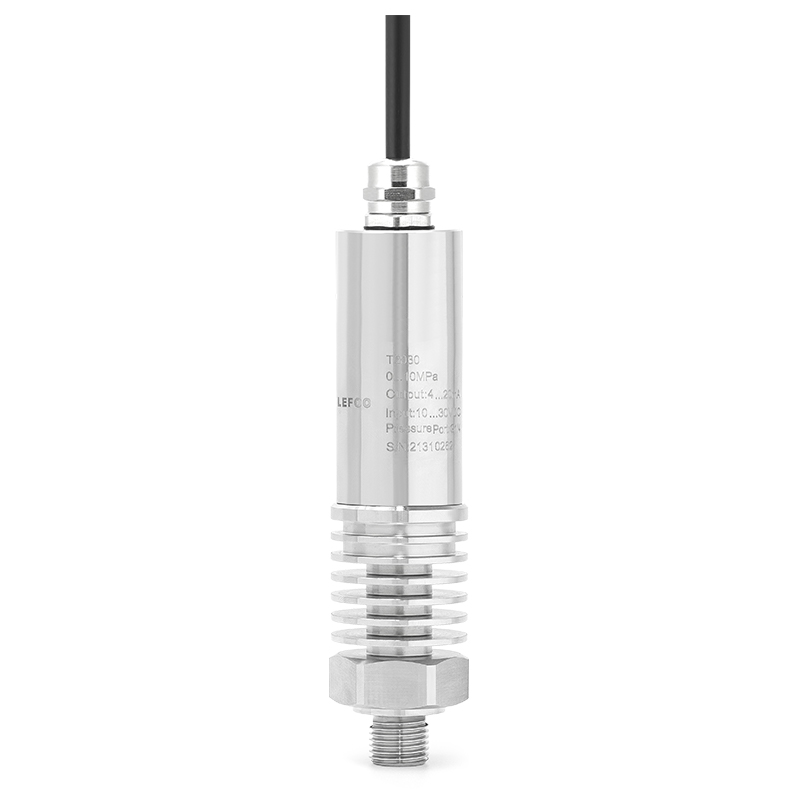

LEFOO LFT2030 high temperature pressure transmitter adopts a high-performance pressure core, and the internal special integrated circuit converts the sensor millivolt signal into standard voltage, current, or 485 signal, which can be directly connected with a computer interface card, control instrument, smart instrument, or PLC, etc. to connect easily. Long-distance transmission can use the current output method. This LFT2030 high temperature pressure transmitter has the characteristics of small size, lightweight, all stainless steel sealing structure, etc., and can work in corrosive environments. The product is easy and simple to install, has very good anti-vibration and anti-shock performance, and is widely used in process control, HVAC, medical equipment, and other fields.
Lefoo High Temperature Pressure Transmitter LFT2030 Features
* The heat sink is fully combined with the core, and it works normally at high temperature
* Adopt ASIC technology, digital compensation technology
* Excellent corrosion and wear resistance
* Strong anti-interference, good long-term stability
* Threaded connection for easy installation
| LEFOO High Temperature Pressure Transmitter LFT2030 | |||||
| Measurement Range | -100kPa…0～10kPa…60MPa(Oil-filled silicon core) | -100kPa…0.3MPa…60MPa(Ceramic core) | |||
Overload Pressure | 1.5 time of full scales | ||||
Accuracy | ±0.5％F.S. | ±0.5％F.S./±1.0％F.S. | |||
Stability | <0.5％F.S./year | ||||
Operating Temperature | -20～+85℃ | ||||
Medium Temperature | 5 heat sinks 180°C, 10 heat sinks 260°C | ||||
Measured Medium | Gas or liquid compatible with 304 and 316L stainless steel, fluorine rubber or nitrile rubber | ||||
| LEFOO General Type High Temperature Pressure Transmitter LFT2030 | |||||
Electrical Performance | Two-wired | Three-wired | Four-wired | ||
Output Signal | 4～20mA | 0.5～4.5V | 0～5V | 0～10V | RS485 |
Power Supply | 10～36VDC | 4.75～5.25VDC | 10～36VDC | 12～36VDC | 10～30VDC |
Electrical Connection | DIN43650A(Big Hirschmann connector), M12 waterproof outlet, M12 Aviation connector(Three cores/Four cores) | ||||
| LEFOO Explosion-proof Type High Temperature Pressure Transmitter LFT2030 | |||||
| Electrical Performance | Two-wired | Three-wired | Four-wired | ||
| Output Signal | 4～20mA | 0～10V | RS485 | ||
| Power Supply | 10～30VDC | 14～36VDC | 10～36VDC | ||
| Electrical Connection | Directly outlet | ||||
Protection Class | IP65 | ||||
Pressure Connection | G1/4, NPT1/2, G1/2 | ||||
Pressure Form | Gauge Pressure G/Absolute Pressure A | ||||
Certification | EU electrical safety standards CE | ||||
| Code and description | Remark | |||||||||||||
LFT2030 | High Temperature Pressure Transmitter | Model | ||||||||||||
Range | -100kPa…0～10kPa…60MPa | Range | ||||||||||||
A4 | A4 = 4～20mA（two-wired） | Output | ||||||||||||
V05 | V05 = 0.5～4.5V（three-wired） | |||||||||||||
V0 | V0 = 0～5V（three-wired） | |||||||||||||
V10 | V10 = 0～10V（three-wired） | |||||||||||||
RS | RS = RS485（four-wired） | |||||||||||||
K | K = kpa | Unit | ||||||||||||
| P | P = psi | |||||||||||||
| B | B = bar | |||||||||||||
M | M = Mpa | |||||||||||||
0.5 | 0.5 = 0.5％F.S. | Accuracy | ||||||||||||
| 1.0 | 1.0=1.0％F.S. | |||||||||||||
D1 | D1 = DIN43650A Big Hirschmann | Electrical Connection | ||||||||||||
M | M = M12 waterproof outlet | |||||||||||||
C3 | C3=GX12 Three-core aviation connector | |||||||||||||
| C4 | C4=GX12 Four-core aviation connector | |||||||||||||
| H | H=M12 Four-core aviation connector | |||||||||||||
| M20 | M20=M20 Waterproof outlet | |||||||||||||
G | G = G1/4 | Pressure connection | ||||||||||||
| G2 | G2 = G1/2 | |||||||||||||
N | N = NPT1/4 | |||||||||||||
| A | A=Ceramic core | Core | ||||||||||||
| B | B-Oil-filled silicon core | |||||||||||||
| N | Without display | Display | ||||||||||||
| D1 | General digital display type | |||||||||||||
| D2 | Explosion-proof digital display type | |||||||||||||
| 1.0 | 1.0 = 1m | Cable Lenth | |||||||||||
| 2.0 | 2.0 = 2m | |||||||||||||
| 3.0 | 3.0 = 3m | |||||||||||||
LFT2030 | 0-60 | A4 | B | 1.0 | D1 | G | B | N | 1.0 | Selection Example | ||||
The heat sink is fully combined with the core, and it works normally at high temperature
Adopt ASIC technology, digital compensation technology
Excellent corrosion and wear resistance
Strong anti-interference, good long-term stability
Threaded connection for easy installation
High temperature pressure transmitters are used in applications where the media temperature exceeds the temperature limits of standard pressure transmitters, such as steam, food processing & engine monitoring. High temperature transducers are the most common solution for measuring pressure in hot environments, although reducing heat with a cooling element may be a better choice for some applications.
