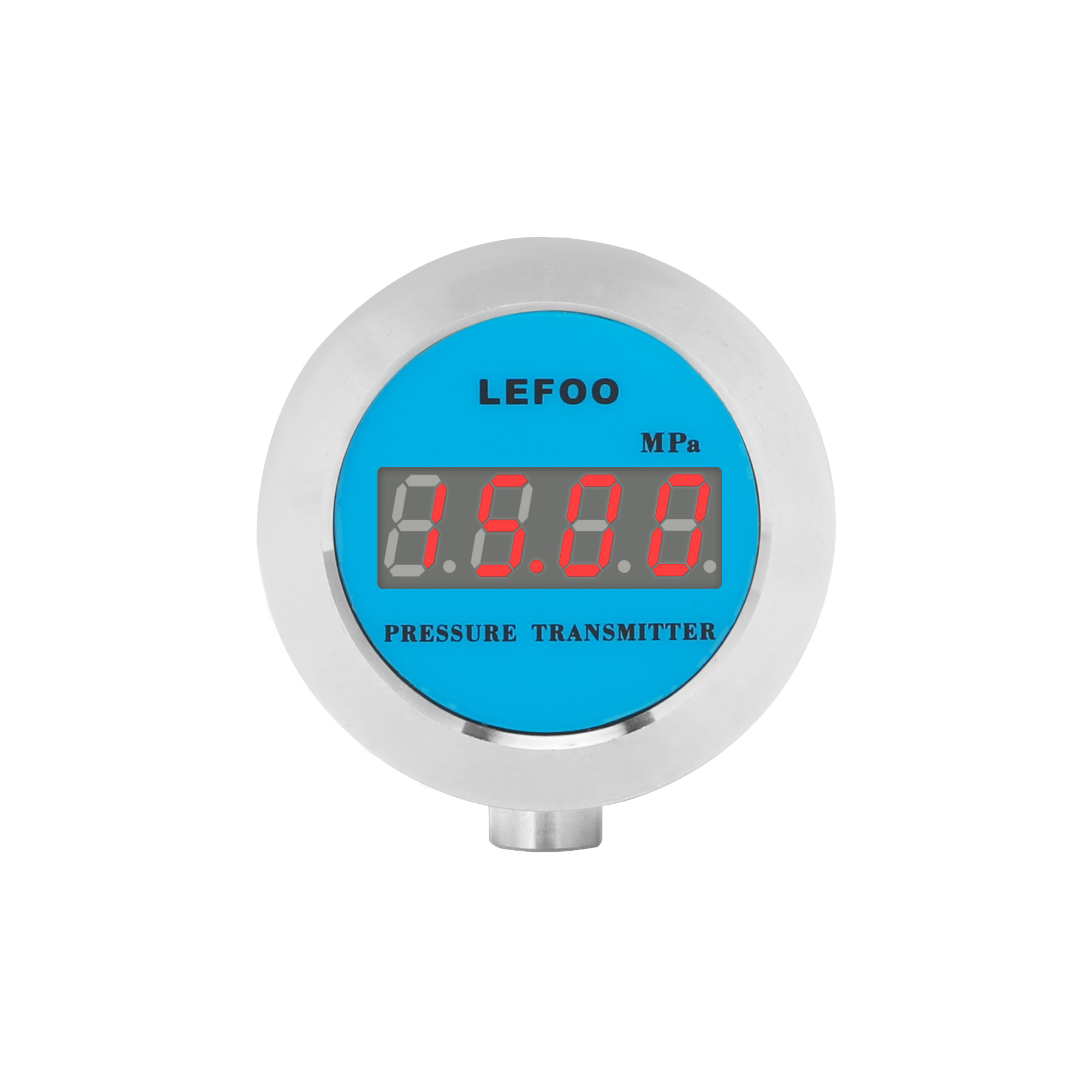

LEFOO LFT6700 is an intelligent digital pressure transmitter, suitable for real-time pressure monitoring and alarm display. Combined with the special sensor conditioning circuit, the pressure signal of the standard MODBUS-RTU protocol can be output. The integrated stainless steel structure design and digital signal output have the characteristics of small size, small drift, stable performance and corrosion resistance. It is suitable for pressure measurement and monitoring in fire protection, petroleum, water treatment, chemical, environmental control and other industries.
Feature
* Core welded structure, good sealing
* Adopt high overload glass micro-melting core
* Real-time monitoring and alarm display
* Anti-strong electromagnetic interference
| LEFOO Digital Display Pressure Transmitter for Firefighting LFT6700 | |
| Measurement range | 0～10...60Mpa |
| Overload pressure | 1.5 Times of full scales |
| Burst pressure | 3 Times of full scales(100MPa max) |
| Accuracy | ±0.1％F.S. |
| Stability | <0.3%F.S./Year |
| Working Temperature | -10～60℃ |
| Storage Temperature | -40~100℃ |
| Medium | Gas or liquid compatible with 304 stainless steel |
| Output Signal | RS485 |
| Power supply | 10～24VDC |
| Electrical Connection | M8 four-core straight head aviation connector |
| Protection Grade | IP67 |
| Pressure Connection | M10*1, NPT1/8 |
| Response time | 50ms |
| Pressure Form | Sealing pressure S |
| Certification | EU Electrical Safety Standards CE |
| Code and Description | Remark | ||||||
| LFT6700 | Digital display pressure transmitter for firefighting | Model | |||||
| Range | 0～10...60Mpa | Range | |||||
| M10 | M10=M10*1 | Pressure Connection | |||||
| N8 | N8=NPT1/8 | ||||||
| 1.5 | 1.5=1.5m | Cable length | |||||
| X | X=customizable | ||||||
| LFT6700 | 0-10 | M10 | 1.5 | Selection example | |||
Core welded structure, good sealing
Adopt high overload glass micro-melting core
Real-time monitoring and alarm display
Anti-strong electromagnetic interference
Fire tank, fire extinguishing equipment，constant pressure water supply, real-time monitoring of oil Wells, pressure measurement, etc.
